Built around one material.
Plasterboard is heavy, awkward and ruined by rain. So the bin loads from the side at waist height, closes up completely, and tips out clean.
The drawing
Every side of it

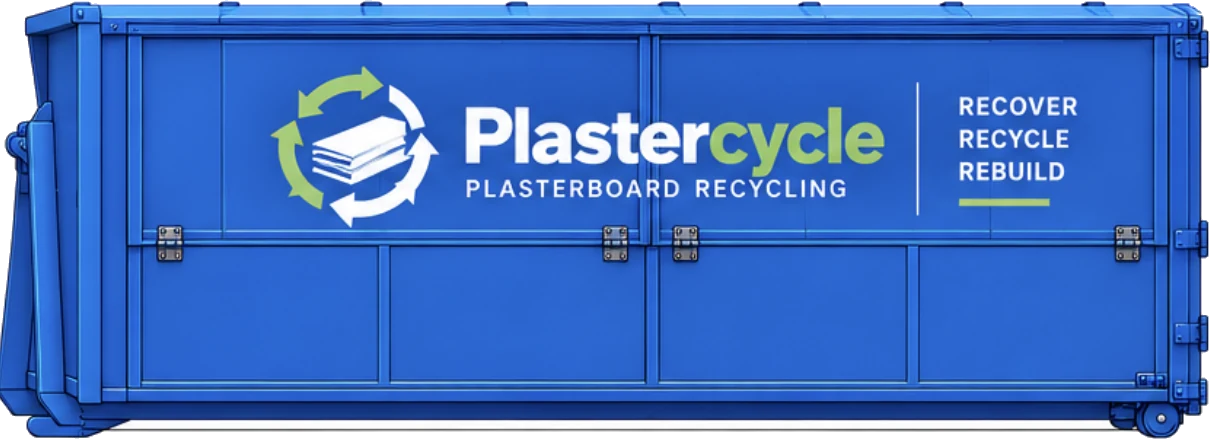

Panels down and latched. The roof and panels keep the weather off the load between drops.
Both top-hinged panels up. Sheets go in through the openings, which start about a metre off the ground.
The A-frame and hook a hook-lift truck uses to drag the bin on and off.

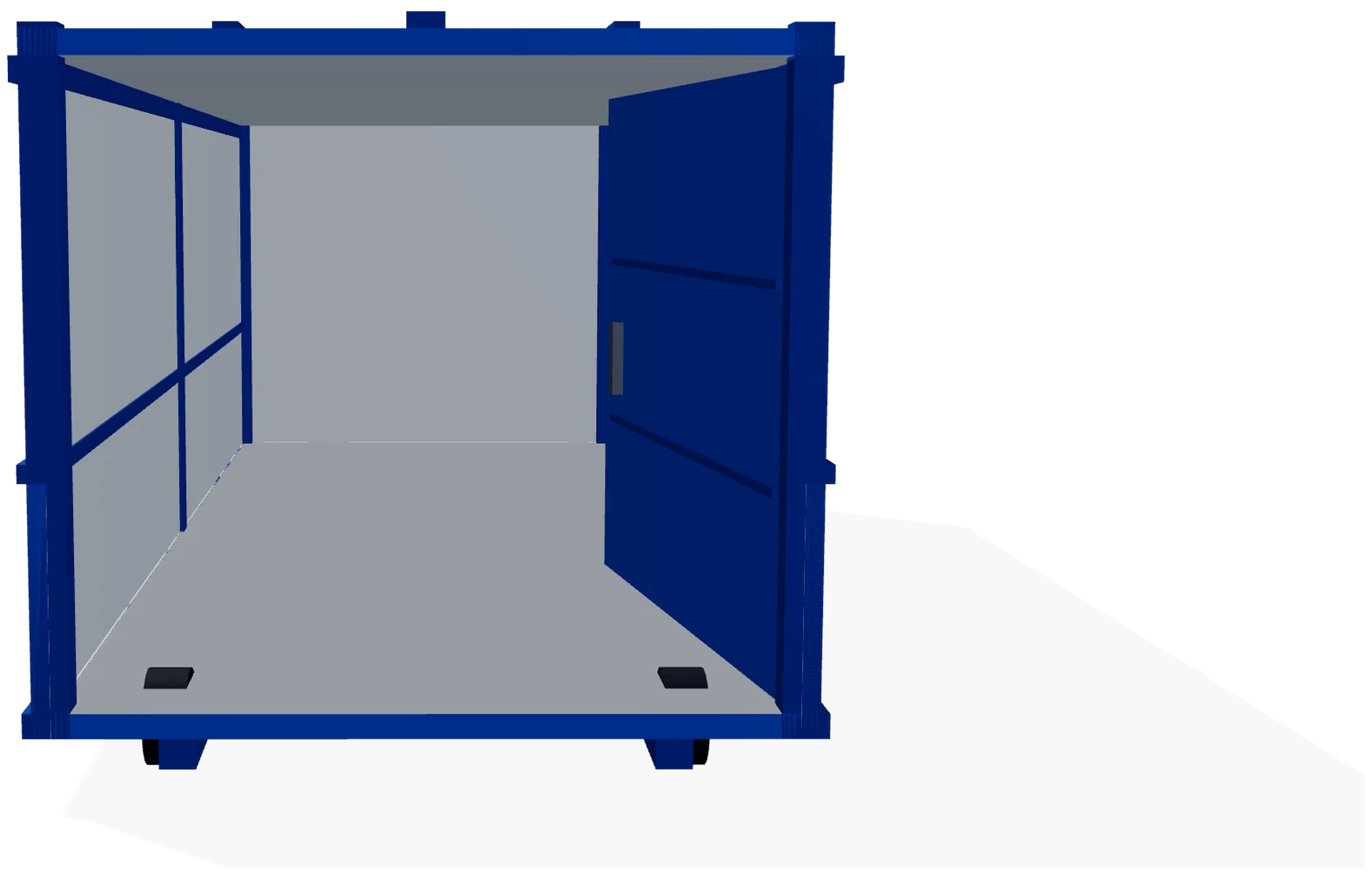

A full-width, full-height solid door with a latch. The load tips out here.
Every internal surface is sheeted smooth, so board doesn’t snag on ribs or beams when the bin is tipped.
Each panel hangs from a top hinge and is held open by a gas strut.
Specifications
From the fabrication drawings. The bin is built to suit the hook-lift trucks we already run. Hook height and rail width are matched to the truck before fabrication.
Download the spec sheet (PDF)| Overall length | 6,300 mm |
|---|---|
| Overall width | 2,450 mm |
| Overall height | 2,400 mm |
| Loading opening | Starts about 1,000 mm off the ground |
| Side panels | Two, hinged at the top, opening in the middle |
| Rear door | Full width, full height, solid |
| Roof | Fully enclosed and weatherproof |
| Inside | Fully sheeted and smooth |
| Volume | About 37 m³ overall |
| Lifting | Hook-lift |
| Build | Heavy-duty steel, weather-resistant paint, Plastercycle blue |
Want one on your site?
Tell us about your transfer station, depot or site and roughly how much board comes through. We’ll come back to you with a plan and a quote.
